Apply Code Simply
The label distribution unit is equipped with an internal dispenser and rewinder device for application with blade.
The system can be mounted on columns in nickel-plated FE or stainless steel, equipped with a system of micrometric vertical / horizontal adjustments or, on request, on a conveyor belt.

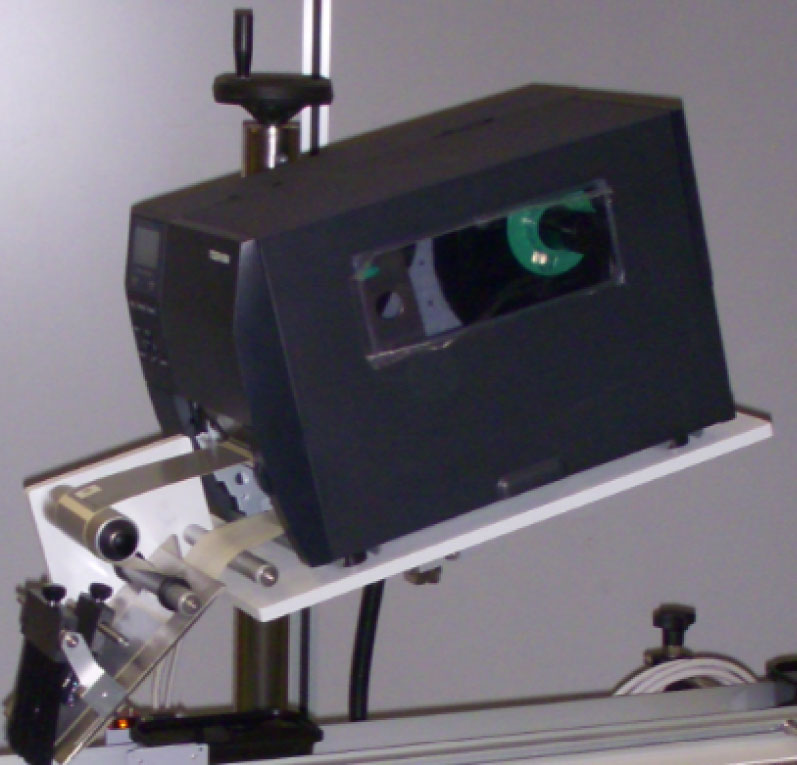

Fixed blade label distribution unit, designed for integration of a thermal transfer bench printer.
Optional
- Timed photocell for print start command
| Available Models | Label width |
| GSS 004C (4" print engine excluded) | 27 – 115 mm |
| Data Sheet | SCARICA IL PDF |
|---|---|
Larghezza passaggio carta |
120 mm max |
Portabobina |
Ø esterno 200 mm max
Ø anima 76 mm
|
Prestazioni |
fino a 30 etichette/min.
|
Gruppo stampa TEC B-EX |
|
Metodo di Stampa |
trasferimento termico e/o termico diretto
|
Larghezza stampa |
4 "
|
Risoluzione Stampa |
200 – 300 dpi
|
Interfaccia di comunicazione |
Ethernet- USB- Centronic-RS232C |
Alimentazione elettrica |
100-230 V, 50-60 Hz, 100 W
|
Dimensioni |
700 x 400 x 400 mm |
Peso |
35 Kg. (bobina etichette esclusa)
|
Label Engineering reserves the right to make construction changes without prior notice that may lead to changes in the characteristics or performances indicated.
